200-kHz Swept Light Source for OCT Imaging
200-kHz Swept Light Source for OCT Imaging

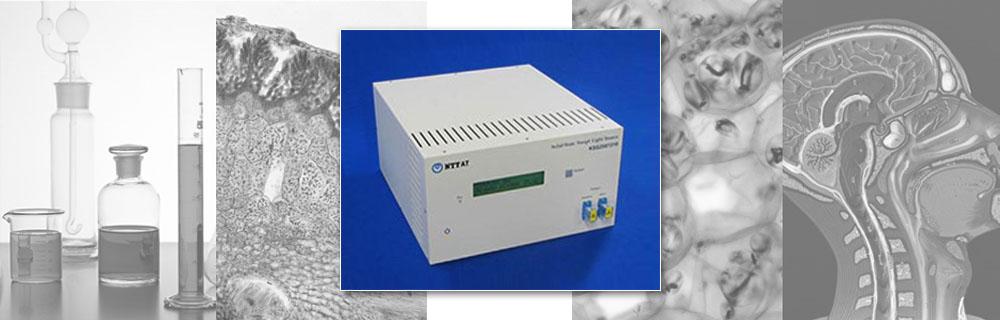

Image of 200-kHz Swept Light Source for OCT Imaging

The highest speed swept-wavelength light source in the world, reducing the impact of diagnostic imaging on patients.

Benefits / Features

The highest speed swept-wavelength light source in the world.

The highest wavelength sweep speed in the world (at 200kHz, this is twice that of conventional products) accelerates image acquisition and as a result, reduces diagnosis time. The reduction in diagnosis time contributes to a great reduction of both the physical and the psychological impact on patients.

The linear frequency sweeping enables.

The total system cost can be reduced because the load on the image processing system is reduced and the linear frequency sweeping enables easy calculation of the relationship between time and wavelength.

Lower jitter than that of the more generally used MEMS-based light sources.

 The swept-wavelength light source with a KTN deflector is expected to be used in phase sensitive OCT systems (Doppler OCT and PS OCT: applications to new OCT diagnosis methods) because of its lower jitter than that of the more generally used MEMS-based light sources.

Specifications

High-speed 200kHz sweep rate
Voltage-controlled sweeping formats k-linear scan available
High phase stability low trigger jitter < 78 psec
Coherence length 7mm at 200 kHz Scan
High reliability no moving parts

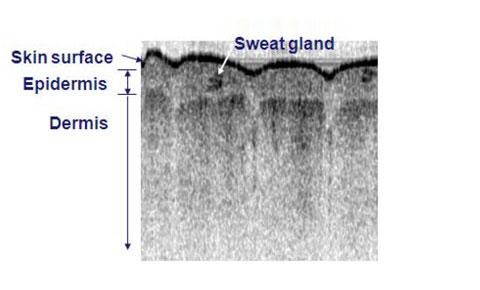

OCT image taken by this product of upper layers of the skin (finger)

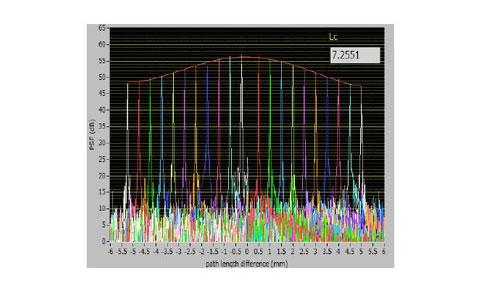

Point Spread Function
Swept light source is based on the results of NTT Photonics Laboratories

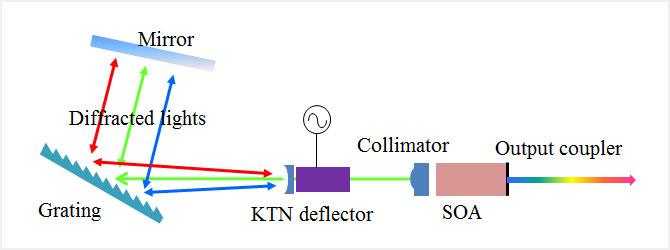

Diagram of high-performance wavelength swept light source with KTN light deflection element

The newly commercialized wavelength swept light source uses a laser with an external resonator, the so-called Littman-Metcalf configuration. By optimizing the laser with a highly efficient diffraction grating and KTN light deflectors into a compact structure, high-speed operation, a wider wavelength sweep span, and sufficient coherence length are realized.
Littman-Metcalf external cavity laser

PAGETOP

Results

The technology of NTT Device Innovation Center is used in the wavelength swept light source for 200kHz OCT.

High-quality products are provided by partnering with Hamamatsu Photonics K.K., which is one of the leading optical products manufacturers in Japan and has a track record in manufacturing and selling medical devices.
