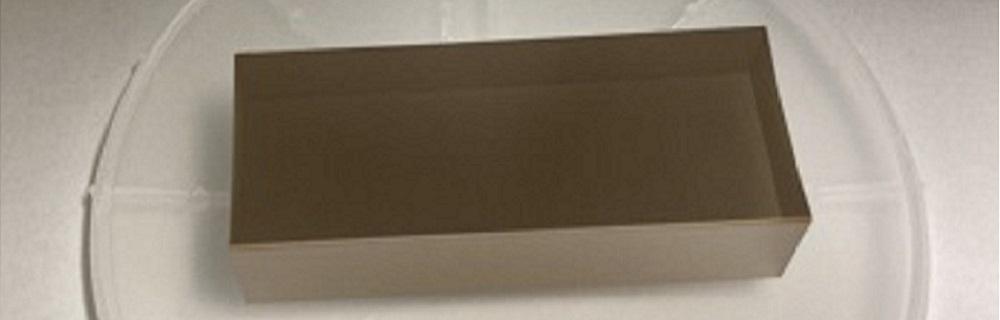

Image of Toroidal mirrors

Custom designable Toroidal mirrors for world wide customer

Toroidal mirrors Inquiry


Toroidal mirrors
NTT-AT has been supplying high-quality custom toroidal mirrors for all UV-EUV applications. In particular, backed by its extensive experience and outstanding skills, it provides custom-designable toroidal mirrors adapted to meet individual customer requirements.


Research institutes around the world have continued to choose NTT-AT's Toroidal mirrors because of their quality. Multi-layer materials and structure are customized to meet your detailed specifications, such as substrate, peak wavelength, bandwidth, and dispersion. High heat-durability multi-layer mirrors are also supported. A reflectivity evaluation service using synchrotron facilities is also available as an option.

Product descriptions


Parameters for custom specifications
Max Length           150mm
Radius  > 10mm
Surface Accuracy  < Lambda/4 @633 nm
Surface roughness < 0.5 nm rms
Surface Quality  20-10
Material Fused silica

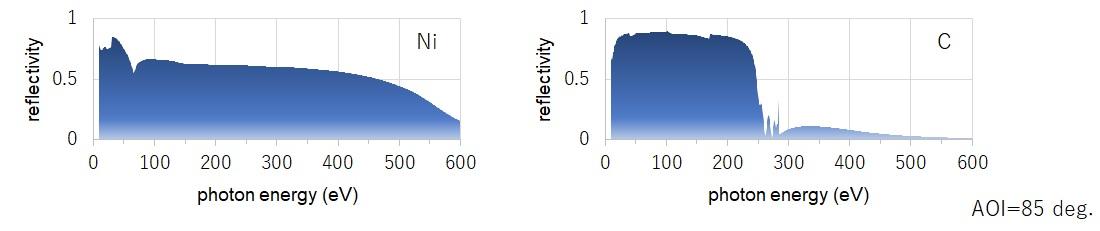

Au, Ni, Ru, SiC, B4C, C
