Multilayer Designs
NTT Advanced Technology have been developing and supplying XUV multilayer mirrors (MLMs) from mid 1990’s. Since, the products are used in several fields such as astronomy, XUV photoelectron spectroscopy, XUV microscopy, EUV lithography, plasma physics, and attosecond-science.
For high-quality MLM fabrications, no only fabrication techniques but also optical design know-how is necessary. We have been supplying a lot of kinds of MLMs in XUV region, corresponding to the customers' requirements, such as a high reflectivity, a broad bandwidth, a narrow bandwidth, and a high contrast. High thermal tolerance MLMs and high damage threshold MLMs have also been supplied.
Please kindly find the detail information of our XUV MLMs for suitable for your experiments. and contact us. We will also provide custom design MLMs.
Multilayer Designs Inquiry
Design List
|
No |
design name |
AOI |
pol. |
peak energy |
reflectivity |
bandwidth (FWHM) |
|
1 |
HR-98-3.4 |
5 deg |
s |
98 eV |
(12.7 nm) |
67.7% |
3.4 eV |
(0.4 nm) |
|
2 |
HR-95-3.8 |
5 deg |
s |
95 eV |
(13.1 nm) |
67.7% |
3.8 eV |
(0.5 nm) |
|
3 |
HR-90-3.8 |
5 deg |
s |
90 eV |
(13.8 nm) |
68.0% |
3.8 eV |
(0.6 nm) |
|
4 |
HR-85-4.0 |
5 deg |
s |
85 eV |
(14.6 nm) |
66.8% |
4.0 eV |
(0.7 nm) |
|
5 |
HR-80-4.0 |
5 deg |
s |
80 eV |
(15.5 nm) |
63.3% |
4.0 eV |
(0.8 nm) |
|
6 |
HR-75-4.6 |
5 deg |
s |
75 eV |
(16.5 nm) |
54.5% |
4.6 eV |
(1.0 nm) |
|
7 |
HR-70-2.6 |
5 deg |
s |
70 eV |
(17.7 nm) |
52.1% |
2.6 eV |
(0.7 nm) |
|
8 |
HR-65-2.6 |
5 deg |
s |
65 eV |
(19.1 nm) |
48.5% |
2.6 eV |
(0.8 nm) |
|
9 |
HR-60-2.8 |
5 deg |
s |
60 eV |
(20.7 nm) |
43.7% |
2.8 eV |
(1.0 nm) |
|
10 |
HR-55-3.6 |
5 deg |
s |
55 eV |
(22.5 nm) |
37.3% |
3.6 eV |
(1.5 nm) |
|
11 |
HR-50-4.2 |
5 deg |
s |
50 eV |
(24.8 nm) |
30.9% |
4.2 eV |
(2.1 nm) |
|
12 |
HR-48-2.0 |
5 deg |
s |
48 eV |
(25.8 nm) |
50.6% |
2.0 eV |
(1.1 nm) |
|
13 |
HR-45-2.4 |
5 deg |
s |
45 eV |
(27.6 nm) |
48.4% |
2.4 eV |
(1.4 nm) |
|
14 |
HR-40-2.6 |
5 deg |
s |
40 eV |
(31.0 nm) |
44.8% |
2.6 eV |
(2.0 nm) |
|
15 |
HR-35-2.6 |
5 deg |
s |
35 eV |
(35.4 nm) |
43.1% |
2.6 eV |
(2.6 nm) |
|
16 |
HR-30-3.0 |
5 deg |
s |
30 eV |
(41.3 nm) |
41.2% |
3.0 eV |
(4.1 nm) |
|
17 |
HR45-90-6.0 |
45 deg |
s |
90 eV |
(13.1 nm) |
66.1% |
6.0 eV |
(0.9 nm) |
|
18 |
HR45-80-7.4 |
45 deg |
s |
80 eV |
(15.5 nm) |
60.0% |
7.4 eV |
(1.4 nm) |
|
19 |
HR45-70-36.0 |
45 deg |
s |
70 eV |
(17.7 nm) |
49.0% |
3.6 eV |
(0.9 nm) |
|
20 |
HR45-60-5.4 |
45 deg |
s |
60 eV |
(20.7 nm) |
40.8% |
5.4 eV |
(1.8 nm) |
|
21 |
HR45-50-10.0 |
45 deg |
s |
50 eV |
(24.8 nm) |
30.0% |
10.0 eV |
(5.1 nm) |
|
22 |
HR45-40-5.0 |
45 deg |
s |
40 eV |
(31.0 nm) |
44.4% |
5.0 eV |
(3.8 nm) |
|
23 |
HR45-30-7.0 |
45 deg |
s |
30 eV |
(41.3 nm) |
42.5% |
7.0 eV |
(9.3 nm) |
|
24 |
NBR-98-2.3 |
5 deg |
s |
98 eV |
(12.7 nm) |
39.5% |
2.3 eV |
(0.3 nm) |
|
25 |
NBR-95-2.6 |
5 deg |
s |
95 eV |
(13.1 nm) |
40.7% |
2.6 eV |
(0.4 nm) |
|
26 |
NBR-90-2.5 |
5 deg |
s |
90 eV |
(13.8 nm) |
44.5% |
2.5 eV |
(0.4 nm) |
|
27 |

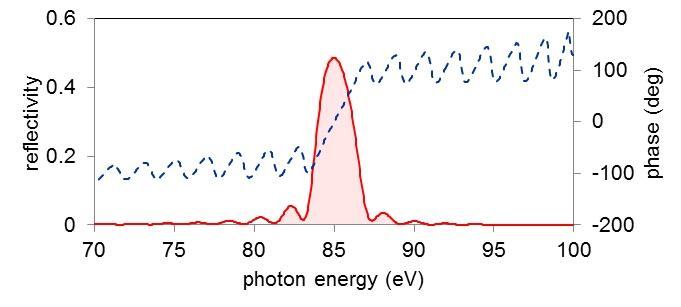

NBR-85-2.5 |
5 deg |
s |
85 eV |
(14.6 nm) |
48.5% |
2.5 eV |
(0.4 nm) |
|
28 |

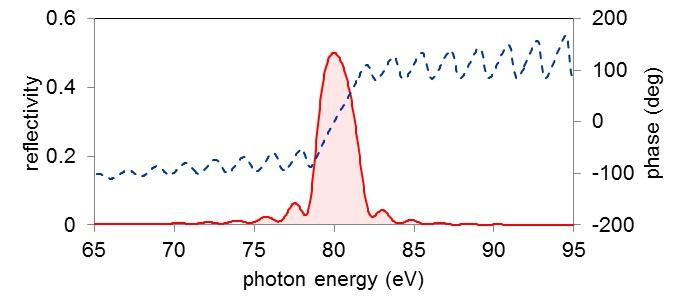

NBR-80-2.5 |
5 deg |
s |
80 eV |
(15.5 nm) |
50.1% |
2.5 eV |
(0.5 nm) |
|
29 |

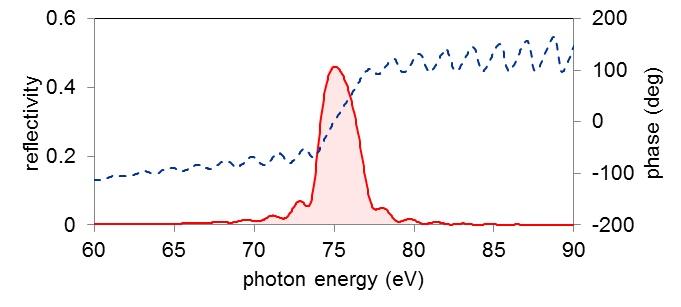

NBR-75-2.6 |
5 deg |
s |
75 eV |
(16.5 nm) |
46.0% |
2.6 eV |
(0.6 nm) |
|
30 |

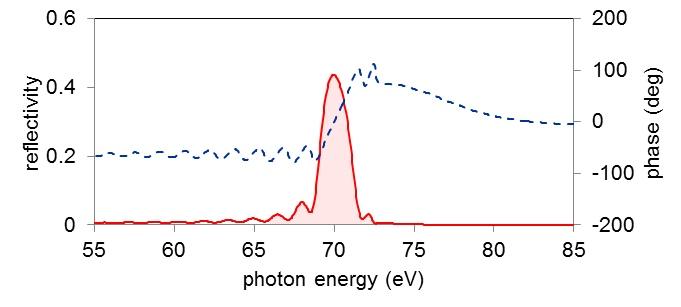

NBR-70-1.9 |
5 deg |
s |
70 eV |
(17.7 nm) |
43.7% |
1.9 eV |
(0.5 nm) |
|
31 |

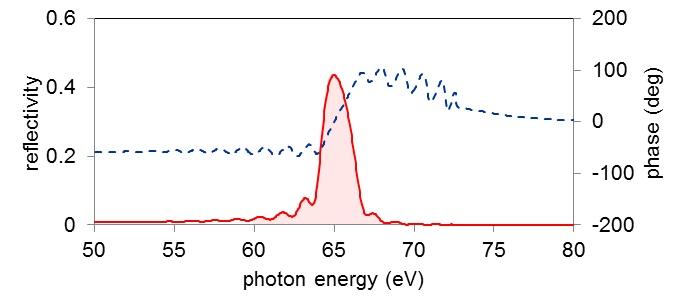

NBR-65-2.1 |
5 deg |
s |
65 eV |
(19.1 nm) |
43.5% |
2.1 eV |
(0.6 nm) |
|

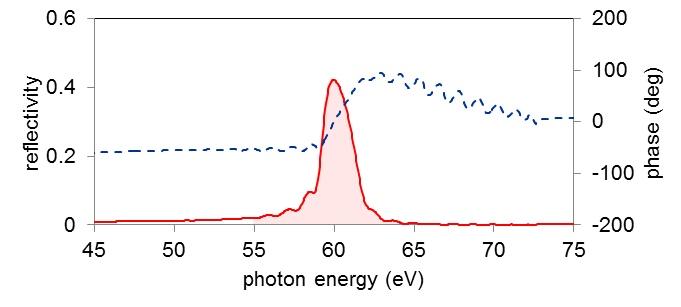

32 |
NBR-60-2.2 |
5 deg |
s |
60 eV |
(20.7 nm) |
42.2% |
2.2 eV |
(0.8 nm) |
|

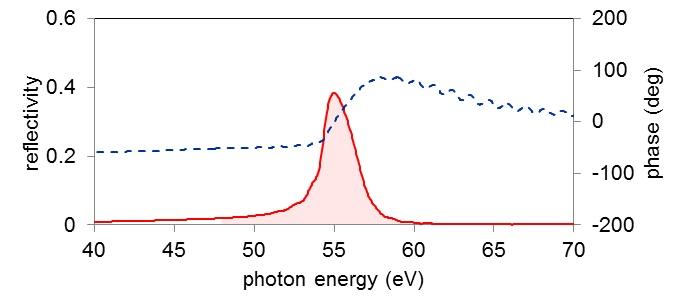

33 |
NBR-55-2.2 |
5 deg |
s |
55 eV |
(22.5 nm) |
38.4% |
2.2 eV |
(1.0 nm) |
|
34 |

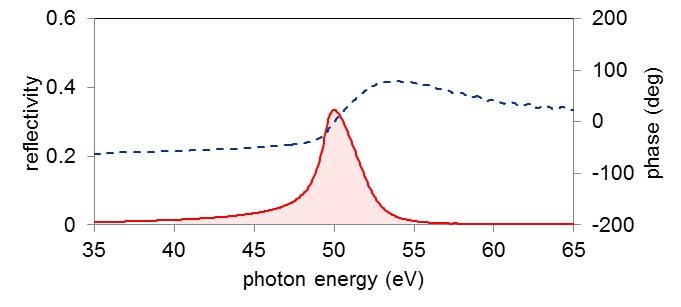

NBR-50-2.7 |
5 deg |
s |
50 eV |
(24.8 nm) |
33.5% |
2.7 eV |
(1.3 nm) |
|
35 |
NBR-48-1.3 |
5 deg |
s |
48 eV |
(25.8 nm) |
49.2% |
1.3 eV |
(0.7 nm) |
|
36 |
NBR-45-1.5 |
5 deg |
s |
45 eV |
(27.6 nm) |
47.6% |
1.5 eV |
(0.9 nm) |
|
37 |

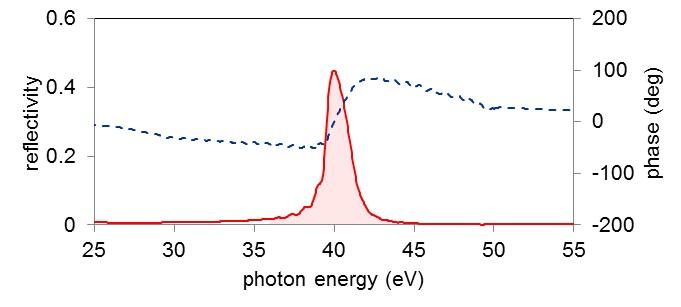

NBR-40-1.5 |
5 deg |
s |
40 eV |
(31.0 nm) |
44.8% |
1.5 eV |
(1.1 nm) |
|
38 |
NBR-35-1.6 |
5 deg |
s |
35 eV |
(35.4 nm) |
43.7% |
1.6 eV |
(1.6 nm) |
|
39 |
NBR-30-1.9 |
5 deg |
s |
30 eV |
(41.3 nm) |
42.0% |
1.9 eV |
(2.6 nm) |
|

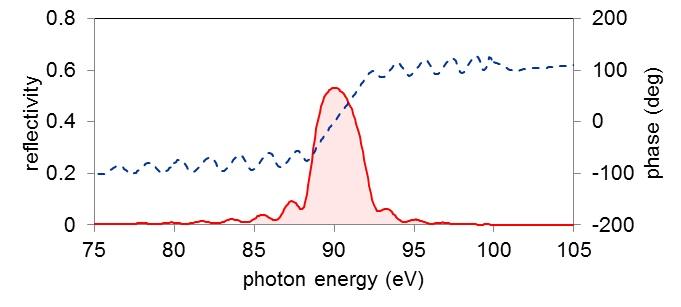

40 |
NBR45-90-3.1 |
45 feg |
s |
90 eV |
(12.7 nm) |
53.2% |
3.1 eV |
(0.5 nm) |
|
41 |

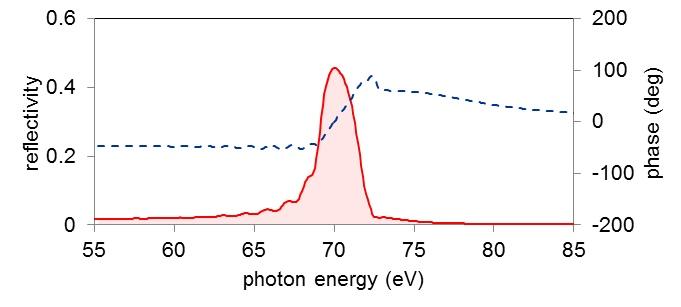

NBR45-70-2.6 |
45 feg |
s |
70 eV |
(17.7 nm) |
45.6% |
2.6 eV |
(0.7 nm) |
|
42 |

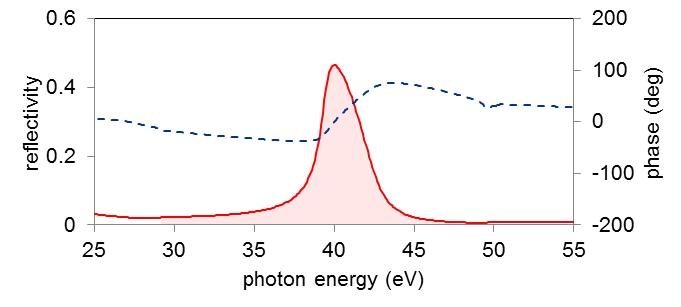

NBR45-40-2.9 |
45 feg |
s |
40 eV |
(31.0 nm) |
46.5% |
2.9 eV |
(2.2 nm) |
|
43 |

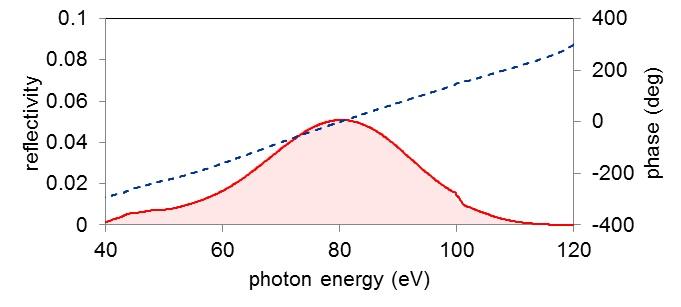

BBR-80-30 |
5 deg |
s |
80 eV |
(15.5 nm) |
5.1% |
30 eV |
(6.1 nm) |
|
44 |

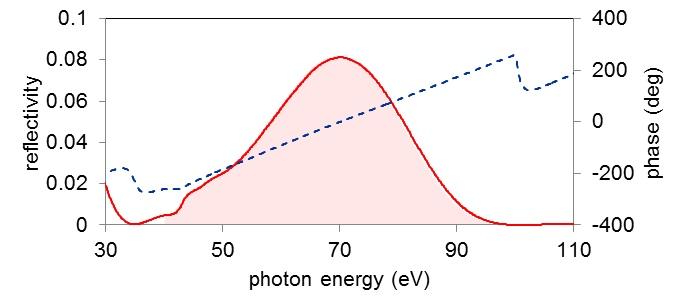

BBR-70-27 |
5 deg |
s |
70 eV |
(17.7 nm) |
8.1% |
27 eV |
(7.3 nm) |
|
45 |

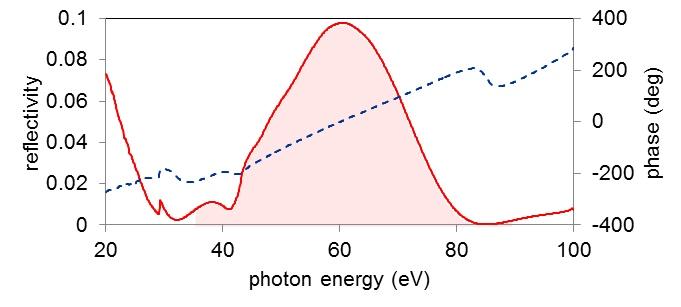

BBR-60-24 |
5 deg |
s |
60 eV |
(20.7 nm) |
9.8% |
24 eV |
(8.6 nm) |
|
46 |

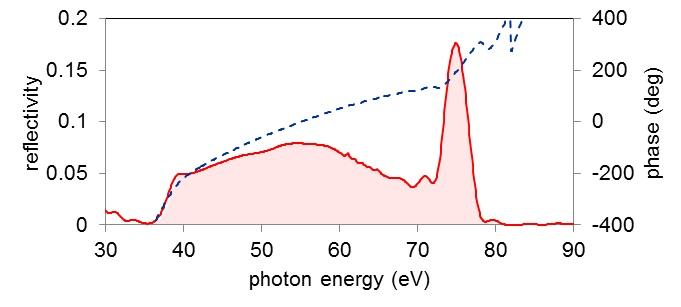

UBBR-55-39 |
5 deg |
s |
55 eV |
(22.5 nm) |
6.8% |
39 eV |
(16.3 nm) |
|

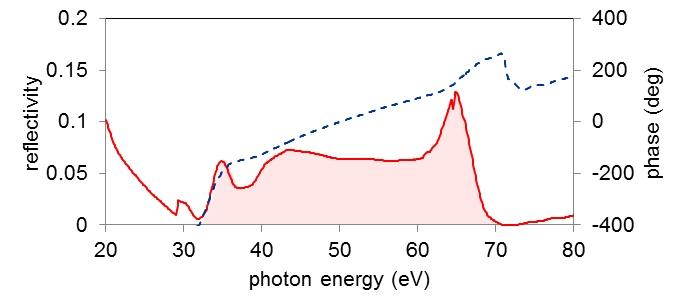

47 |
UBBR-50-34 |
5 deg |
s |
50 eV |
(24.8 nm) |
6.7% |
34 eV |
(18.6 nm) |

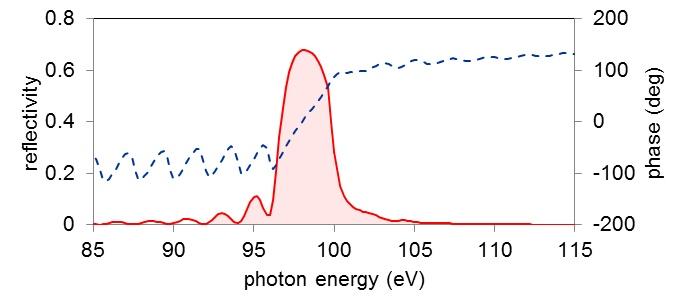

HR-98-3.4
|
Design name |
HR-98-3.4 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
98 eV |
(12.7 nm) |
|
peak reflectivity |
67.7% |
|
bandwidth (FWHM) |
3.4 eV |
(0.4 nm) |
GO TO Design List

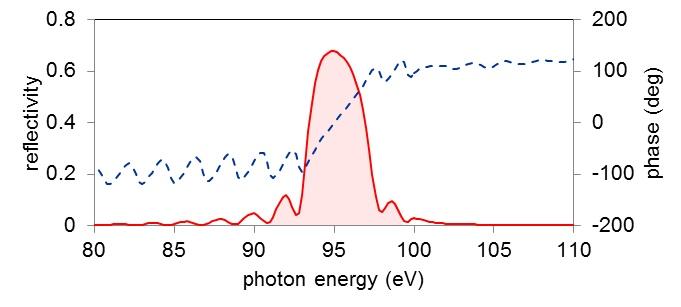

HR-95-3.8
|
Design name |
HR-95-3.8 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
95 eV |
(13.1 nm) |
|
peak reflectivity |
67.7% |
|
bandwidth (FWHM) |
3.8 eV |
(0.5 nm) |
GO TO Design List

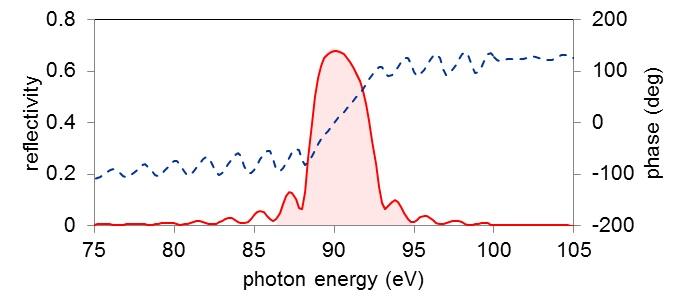

HR-90-3.8
|
Design name |
HR-90-3.8 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
90 eV |
(13.8 nm) |
|
peak reflectivity |
68.0% |
|
bandwidth (FWHM) |
3.8 eV |
(0.6 nm) |
GO TO Design List

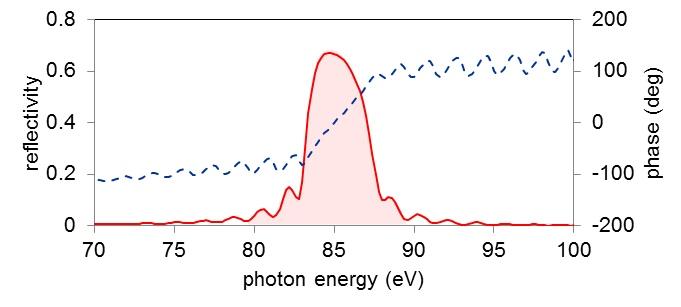

HR-85-4.0
|
Design name |
HR-85-4.0 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
85 eV |
(14.6 nm) |
|
peak reflectivity |
66.8% |
|
bandwidth (FWHM) |
4.0 eV |
(0.7 nm) |
GO TO Design List

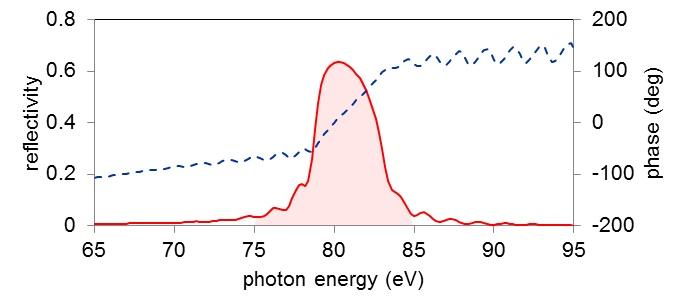

HR-80-4.0
|
Design name |
HR-80-4.0 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
80 eV |
(15.5 nm) |
|
peak reflectivity |
63.3% |
|
bandwidth (FWHM) |
4.0 eV |
(0.8 nm) |
GO TO Design List

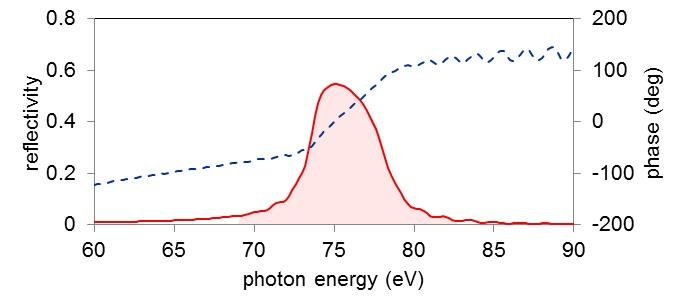

HR-75-4.6
|
Design name |
HR-75-4.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
75 eV |
(16.5 nm) |
|
peak reflectivity |
54.5% |
|
bandwidth (FWHM) |
4.6 eV |
(1.0 nm) |
GO TO Design List

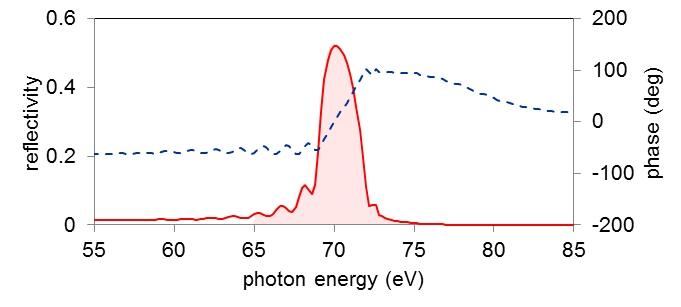

HR-70-2.6
|
Design name |
HR-70-2.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
70 eV |
(17.7 nm) |
|
peak reflectivity |
52.1% |
|
bandwidth (FWHM) |
2.6 eV |
(0.7 nm) |
GO TO Design List

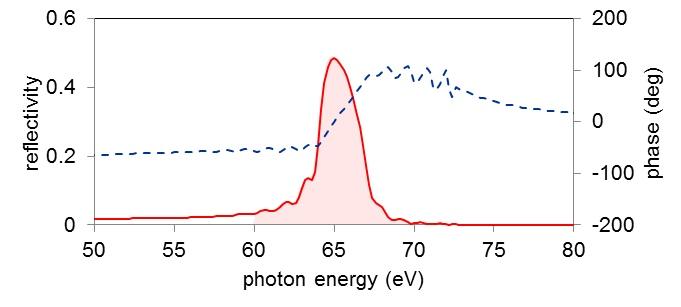

HR-65-2.6
|
Design name |
HR-65-2.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
65 eV |
(19.1 nm) |
|
peak reflectivity |
48.5% |
|
bandwidth (FWHM) |
2.6 eV |
(0.8 nm) |
GO TO Design List

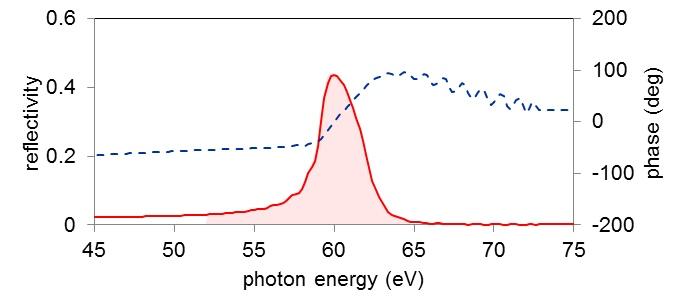

HR-60-2.8
|
Design name |
HR-60-2.8 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
60 eV |
(20.7 nm) |
|
peak reflectivity |
43.7% |
|
bandwidth (FWHM) |
2.8 eV |
(1.0 nm) |
GO TO Design List

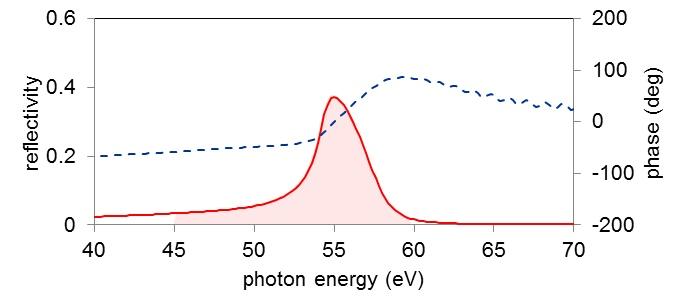

HR-55-3.6
|
Design name |
HR-55-3.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
55 eV |
(22.5 nm) |
|
peak reflectivity |
37.3% |
|
bandwidth (FWHM) |
3.6 eV |
(1.5 nm) |
GO TO Design List
HR-50-4.2
|
Design name |
HR-50-4.2 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
50 eV |
(24.8 nm) |
|
peak reflectivity |
30.9% |
|
bandwidth (FWHM) |
4.2 eV |
(2.1 nm) |
GO TO Design List

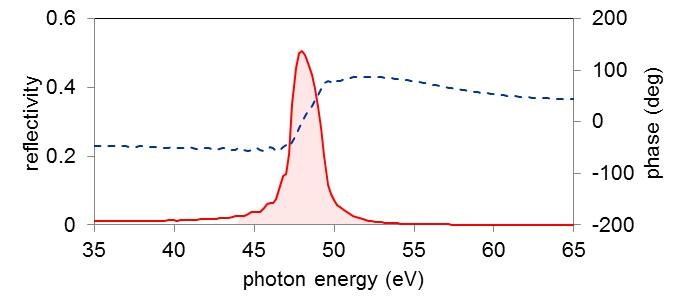

HR-48-2.0
|
Design name |
HR-48-2.0 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
48 eV |
(25.8 nm) |
|
peak reflectivity |
50.6% |
|
bandwidth (FWHM) |
2.0 eV |
(1.1 nm) |
GO TO Design List

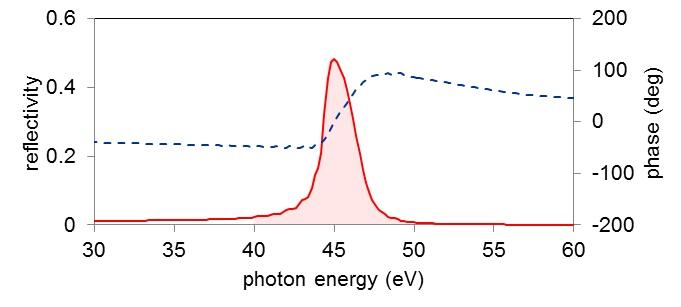

HR-45-2.4
|
Design name |
HR-45-2.4 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
45 eV |
(27.6 nm) |
|
peak reflectivity |
48.4% |
|
bandwidth (FWHM) |
2.4 eV |
(1.4 nm) |
GO TO Design List

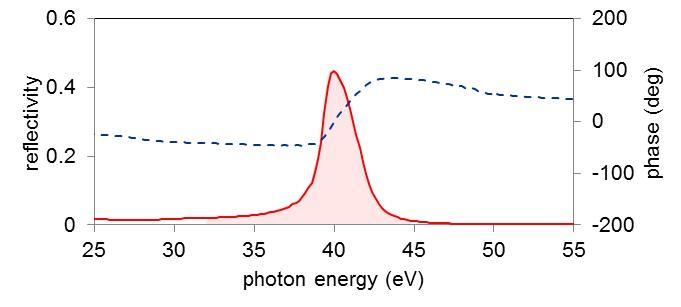

HR-40-2.6
|
Design name |
HR-40-2.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
40 eV |
(31 nm) |
|
peak reflectivity |
44.8% |
|
bandwidth (FWHM) |
2.6 eV |
(2.0 nm) |
GO TO Design List

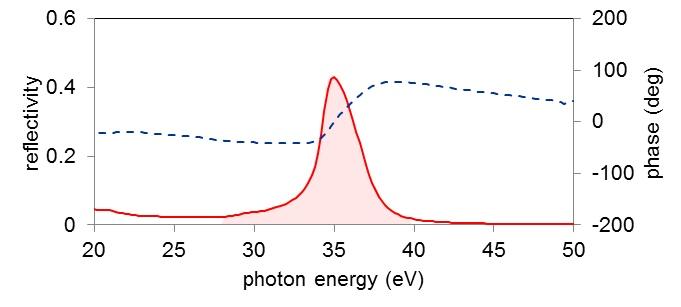

HR-35-2.6
|
Design name |
HR-35-2.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
35 eV |
(35.4 nm) |
|
peak reflectivity |
43.1% |
|
bandwidth (FWHM) |
2.6 eV |
(2.6 nm) |
GO TO Design List

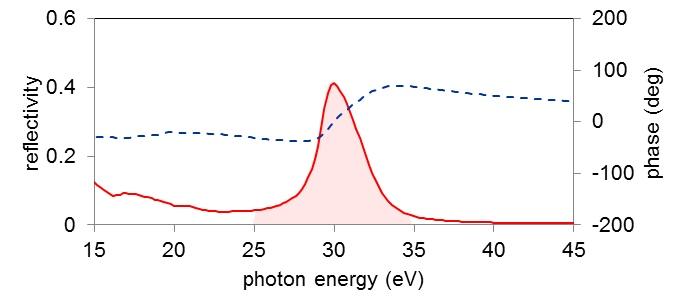

HR-30-3.0
|
Design name |
HR-30-3.0 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
30 eV |
(41.3 nm) |
|
peak reflectivity |
41.2% |
|
bandwidth (FWHM) |
3.0 eV |
(4.1 nm) |
GO TO Design List

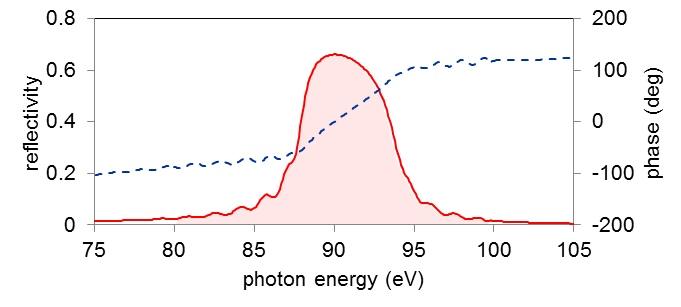

HR45-90-6.0
|
Design name |
HR45-90-6.0 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
90 eV |
(13.8 nm) |
|
peak reflectivity |
66.1% |
|
bandwidth (FWHM) |
6.0 eV |
(0.9 nm) |
GO TO Design List

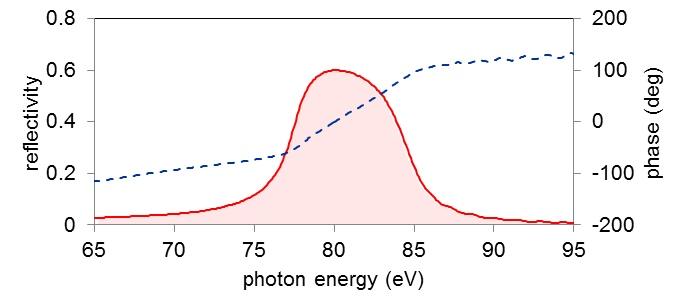

HR45-80-7.4
|
Design name |
HR45-80-7.4 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
80 eV |
(15.5 nm) |
|
peak reflectivity |
60.0% |
|
bandwidth (FWHM) |
7.4 eV |
(1.4 nm) |
GO TO Design List

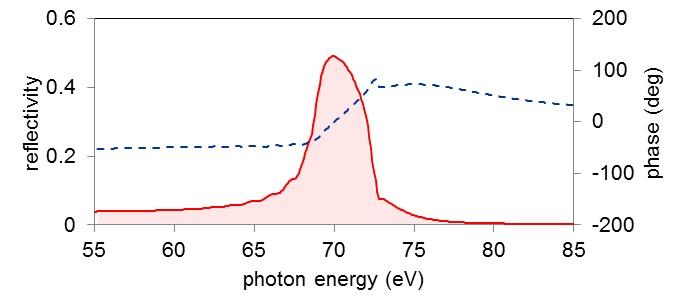

HR45-70-36.0
|
Design name |
HR45-70-3.6 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
70 eV |
(17.7 nm) |
|
peak reflectivity |
49.0% |
|
bandwidth (FWHM) |
3.6 eV |
(0.9 nm) |
GO TO Design List

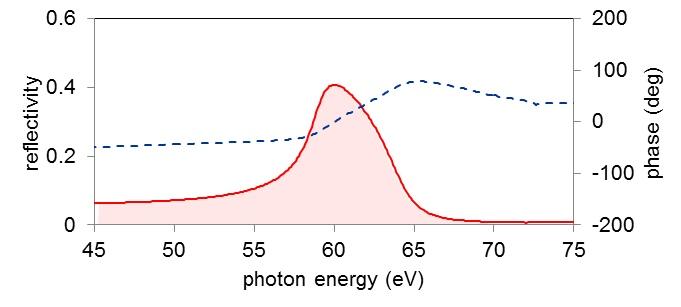

HR45-60-5.4
|
Design name |
HR45-60-5.4 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
60 eV |
(20.7 nm) |
|
peak reflectivity |
40.8% |
|
bandwidth (FWHM) |
5.4 eV |
(1.8 nm) |
GO TO Design List

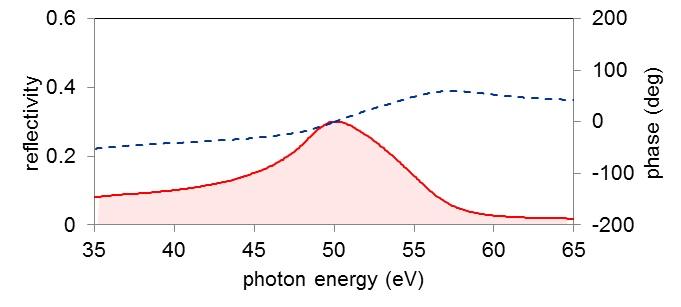

HR45-50-10.0
|
Design name |
HR45-50-10.0 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
50 eV |
(24.8 nm) |
|
peak reflectivity |
30.0% |
|
bandwidth (FWHM) |
10.0 eV |
(5.1 nm) |
GO TO Design List

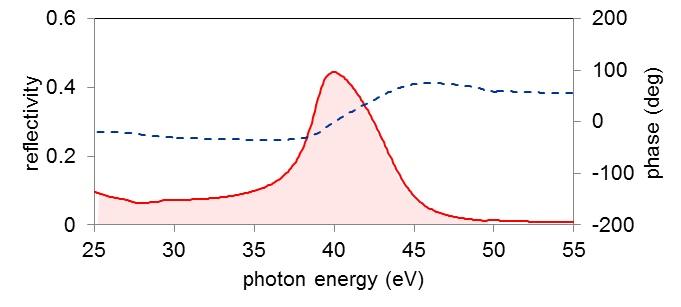

HR45-40-5.0
|
Design name |
HR45-40-5.0 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
40 eV |
(31 nm) |
|
peak reflectivity |
44.4% |
|
bandwidth (FWHM) |
5.0 eV |
(3.8 nm) |
GO TO Design List

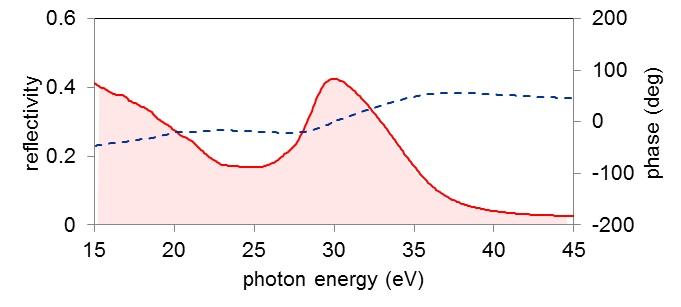

HR45-30-7.0
|
Design name |
HR45-30-7.0 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
30 eV |
(41.3 nm) |
|
peak reflectivity |
42.5% |
|
bandwidth (FWHM) |
7.0 eV |
(9.3 nm) |

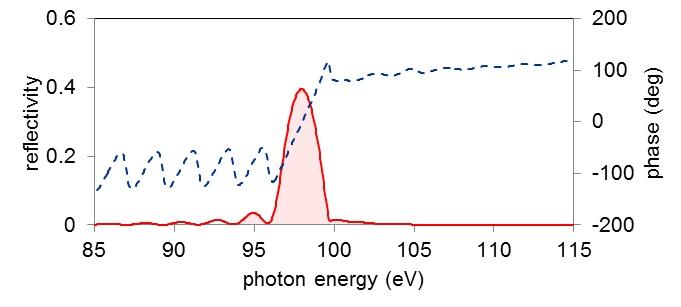

NBR-98-2.3
|
Design name |
NRB-98-2.3 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
98 eV |
(12.7 nm) |
|
peak reflectivity |
39.5% |
|
bandwidth (FWHM) |
2.3 eV |
(0.3 nm) |
GO TO Design List

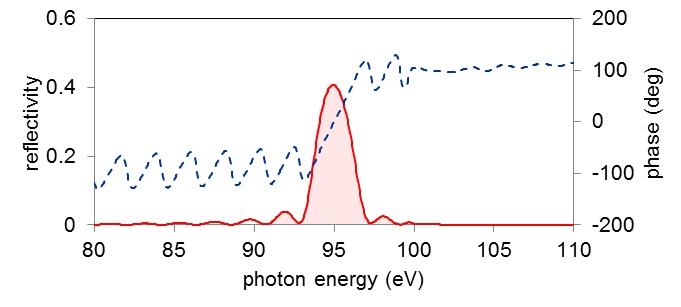

NBR-95-2.6
|
Design name |
NNR-95-2.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
95 eV |
(13.1 nm) |
|
peak reflectivity |
40.7% |
|
bandwidth (FWHM) |
2.6 eV |
(0.4 nm) |
GO TO Design List

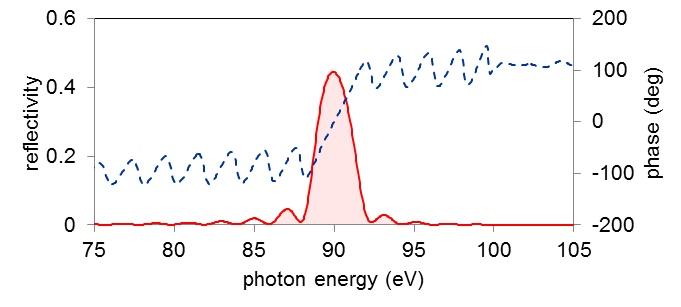

NBR-90-2.5
|
Design name |
NRB-90-2.5 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
90 eV |
(13.8 nm) |
|
peak reflectivity |
44.5% |
|
bandwidth (FWHM) |
2.5 eV |
(0.4 nm) |
GO TO Design List
NBR-85-2.5
|
Design name |
NNR-85-2.5 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
85 eV |
(14.6 nm) |
|
peak reflectivity |
48.5% |
|
bandwidth (FWHM) |
2.5 eV |
(0.4 nm) |
GO TO Design List
NBR-80-2.5
|
Design name |
NRB-80-2.5 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
80 eV |
(15.5 nm) |
|
peak reflectivity |
50.1% |
|
bandwidth (FWHM) |
2.5 eV |
(0.5 nm) |
GO TO Design List
NBR-75-2.6
|
Design name |
NNR-75-2.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
75 eV |
(16.5 nm) |
|
peak reflectivity |
46.0% |
|
bandwidth (FWHM) |
2.6 eV |
(0.6 nm) |
GO TO Design List
NBR-70-1.9
|
Design name |
NRB-70-1.9 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
70 eV |
(17.7 nm) |
|
peak reflectivity |
43.7% |
|
bandwidth (FWHM) |
1.9 eV |
(0.5 nm) |
GO TO Design List
NBR-65-2.1
|
Design name |
NNR-65-2.1 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
65 eV |
(19.1 nm) |
|
peak reflectivity |
43.5% |
|
bandwidth (FWHM) |
2.1 eV |
(0.6 nm) |
GO TO Design List
NBR-60-2.2
|
Design name |
NRB-60-2.2 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
60 eV |
(20.7 nm) |
|
peak reflectivity |
42.2% |
|
bandwidth (FWHM) |
2.2 eV |
(0.8 nm) |
GO TO Design List
NBR-55-2.2
|
Design name |
NNR-55-2.4 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
55 eV |
(22.5 nm) |
|
peak reflectivity |
38.4% |
|
bandwidth (FWHM) |
2.4 eV |
(1 nm) |
GO TO Design List
NBR-50-2.7
|
Design name |
NRB-50-2.7 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
50 eV |
(24.8 nm) |
|
peak reflectivity |
33.5% |
|
bandwidth (FWHM) |
2.7 eV |
(1.3 nm) |
GO TO Design List

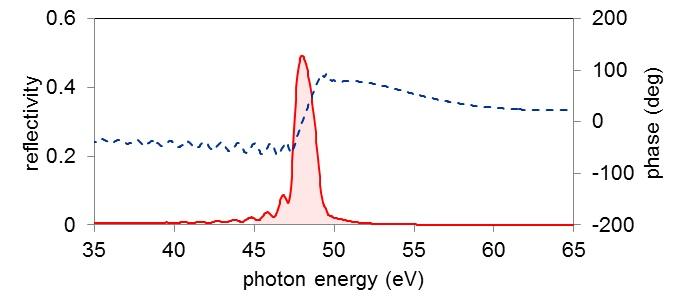

NBR-48-1.3
|
Design name |
NNR-48-1.3 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
48 eV |
(25.8 nm) |
|
peak reflectivity |
49.2% |
|
bandwidth (FWHM) |
1.3 eV |
(0.7 nm) |
GO TO Design List

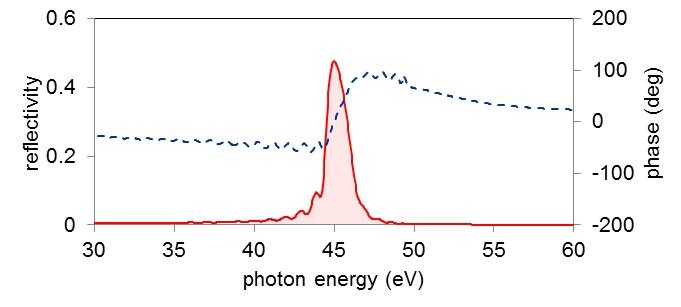

NBR-45-1.5
|
Design name |
NRB-45-1.5 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
45 eV |
(27.6 nm) |
|
peak reflectivity |
47.6% |
|
bandwidth (FWHM) |
1.5 eV |
(0.9 nm) |
GO TO Design List
NBR-40-1.5
|
Design name |
NNR-40-1.5 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
40 eV |
(31 nm) |
|
peak reflectivity |
44.8% |
|
bandwidth (FWHM) |
1.5 eV |
(1.1 nm) |
GO TO Design List

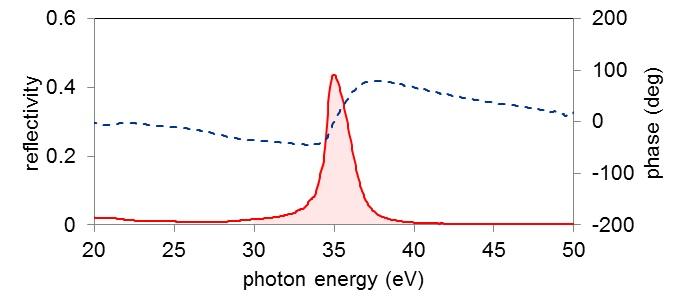

NBR-35-1.6
|
Design name |
NRB-35-1.6 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
35 eV |
(35.4 nm) |
|
peak reflectivity |
43.7% |
|
bandwidth (FWHM) |
1.6 eV |
(1.6 nm) |
GO TO Design List

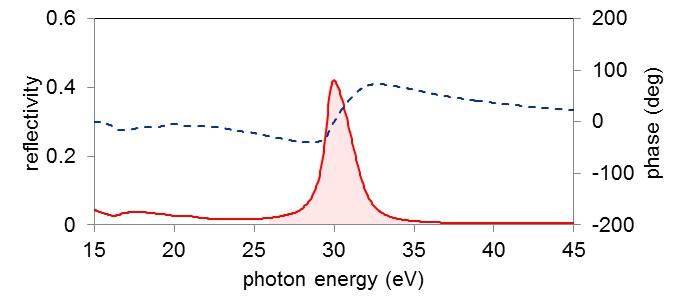

NBR-30-1.9
|
Design name |
NNR-30-1.9 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
30 eV |
(41.3 nm) |
|
peak reflectivity |
42.0% |
|
bandwidth (FWHM) |
1.9 eV |
(2.6 nm) |
GO TO Design List
NBR45-90-3.1
|
Design name |
NRB45-90-3.1 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
90 eV |
(13.8 nm) |
|
peak reflectivity |
53.2% |
|
bandwidth (FWHM) |
3.1 eV |
(0.5 nm) |
GO TO Design List
NBR45-70-2.6
|
Design name |
NNR45-70-2.6 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
70 eV |
(17.7 nm) |
|
peak reflectivity |
45.6% |
|
bandwidth (FWHM) |
2.6 eV |
(0.7 nm) |
GO TO Design List
NBR45-40-2.9
|
Design name |
NRB45-40-2.9 |
|
AOI |
45 deg |
|
polarization |
s |
|
peak energy |
40 eV |
(31 nm) |
|
peak reflectivity |
46.5% |
|
bandwidth (FWHM) |
2.9 eV |
(2.2 nm) |
GO TO Design List
BBR-80-30
|
Design name |
BBR-80-30 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
80 eV |
(15.5 nm) |
|
peak reflectivity |
5.1% |
|
bandwidth (FWHM) |
30 eV |
(6.1 nm) |
GO TO Design List
BBR-70-27
|
Design name |
BBR-70-27 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
70 eV |
(17.7 nm) |
|
peak reflectivity |
8.1% |
|
bandwidth (FWHM) |
27 eV |
(7.3 nm) |
GO TO Design List
BBR-60-24
|
Design name |
BBR-60-24 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
60 eV |
(20.7 nm) |
|
peak reflectivity |
9.8% |
|
bandwidth (FWHM) |
24 eV |
(8.6 nm) |
GO TO Design List
UBBR-55-39
|
Design name |
UBBR-55-39 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
55 eV |
(22.5 nm) |
|
peak reflectivity |
6.8% |
|
bandwidth (FWHM) |
39 eV |
(16.3 nm) |
GO TO Design List
UBBR-50-34
|
Design name |
UBBR-50-34 |
|
AOI |
5 deg |
|
polarization |
s |
|
peak energy |
50 eV |
(24.8 nm) |
|
peak reflectivity |
6.7% |
|
bandwidth (FWHM) |
34 eV |
(18.6 nm) |
GO TO Design List
Papers ＆Publications
Link page
Documents
