Most troubles in optical communication facilities are caused by dirty end face of the optical connector.

The NEOCLEAN series of optical connector cleaners uses ultra-fine fibers developed specifically for optical connectors. It removes contamination that cannot be seen with the naked eye without using alcohol. Please use our service to improve the efficiency of optical work and the reliability of communication services.

The optical connector cleaner NEOCLEAN series complies with the RoHS Directive.
NEOCLEAN is a trademark or a registered trademark of NTT Advanced Technology Corporation.
Update (May 7, 2021): REACH Compliant Optical Conn
ector Cleaner List
Renewal of NEOCLEAN-E1 (Square guide) LC adapter cleaning became more reliable.

NEW   NEOCLEAN-F  Pen Type

NEOCLEAN-F is an evolved pen-type optical connector cleaner based on the cleaner technology that NTT-AT has developed over many years.

NEOCLEAN-F
NEOCLEAN-F (Top Left: NEOCLEAN-F 12, Bottom Right: NEOCLEAN-F 25)

Features

Lightweight body of about 20g (0.7oz) and 1000+ cleans
With the newly developed mechanism, more than 1000 cleanings have been achieved even in a compact size with a thickness of 15mm (0.6inch).

High cleaning performance
A cleaning thread that bundles micro-fibers, which is well-established in the NEOCLEAN series have been adopted.  It firmly catches contamination on the connector end face. In addition, antistatic grade material is used for the body to prevent reattachment of dust due to static electricity.

Convenient features for field engineers
The string connecting the attachment and the unit can be used as a strap, so there is no need to worry about dropping the unit during field operation. When the attachment is held at the rear of the unit, it will not interfere with cleaning.

Specifications

Product Name NEOCLEAN-F12
NEOCLEAN-F12
NEOCLEAN-F25
NEOCLEAN-F25
Model ATC-NF-12 ATC-NF-25
Compatible Connectors LC, MU   SC, FC, ST, E2000
Compatible End Face PC, APC (Angled PC)
Size (mm) 163 (L) x 22 (H) x 15 (W) (without the attachment)
Weight (g) Approximately 20 g
Usages More than 1000 times*
*In the case of LC/PC/ for F 12 and SC/PC for F 25

NEOCLEAN-M, NEOCLEAN-M2  Pen Type

NEOCLEAN-M

Instantly clean MPO connectors with a simple push




Many troubles in optical communications equipment are caused by contamination on the optical connector end face.

NEOCLEAN-M series, the MPO/MTP connector cleaners, employ microfibers designed specifically for optical connectors to remove even the smallest contamination not visible to the naked eye. Please take advantage of the improvements you will receive in optical construction working efficiency and in communication services reliability.

MPO connectors of 1 row with 12 core and 2 rows with 24 core are common, and the MPO-16 expanded to 1 row with 16 care has been introduced, and so the importance of cleaning is also increasing.

The NEOCLEAN-M for 12-core systems and the NEOCLEAN-M2 for 16-core systems respond to the need for endface cleaning.

Features

One-push operation with no special skills required
The specially designed microfibers remove contaminants by an easy push operation without damaging the delicate optical fiber core.

Compact design with workability in mind
Brings you the possibility of over 600 cleanings in a very portable compact design that excels in workability.

Compatibility for both plugs and adaptors in one unit
In addition of optical port adaptors, attaching the cap (included) allows you to also easily clean plugs too.

neoclean-m01 neoclean-m02
Cleaning an adaptor Cap attached for cleaning a plug

Specifications



Product Name NEOCLEAN-M NEOCLEAN-M2
Model ATC-NE-M1 ATC-NE-M2
Compatible Connectors MPO,  MTP MPO-16,  MTP-16
Compatible End Face Flat and 8 degree slant (compatible with or without guide pins)
Size(mm) Main Body 197L×15W×51H 197L×15W×51H
With Cap Attached 208L×17W×51H 204L×15W×51H
Standard Usages Over 600 times

Cleaning Performance



neoclean-m03 neoclean-m04
Before Cleaning After Cleaning

NEOCLEAN®-EZ  Pen Type

Features

One simple push action cleans optical connector ferrule end face.

Especially compact body designed for cleaning in the narrow spaces of optical connector ports. Fixing the attachment to the rear end allows you to also clean the deep recessed optical ports.

Simply remove the front tip cap to enable optical plug cleaning.



NEOCLEAN-EZ1
NEOCLEAN-EZ1
NEOCLEAN-EZ1, NEOCLEAN-EZ2
NEOCLEAN-EZ1, NEOCLEAN-EZ2
NEOCLEAN-EZ3
NEOCLEAN-EZ3
NEOCLEAN-EZ1 Plus
NEOCLEAN-EZ1 Plus

NEOCLEAN-EZv

NEOCLEAN-EZv cleans the φ2-mm optical connector in the hybrid electrical and fiber-optic connector for the broadcast cameras.The new “NEOCLEAN-EZv” is developed exclusively for broadcasting and video connectors, which allows an easy cleaning without troublesome work such as attaching and detaching the split sleeve inside the connector.

Neoclean-EZv
NEOCLEAN-EZv

NEOCLEAN-EZ3

The "NEOCLEAN-EZ3" can clean 2.5mm optical connector ports with its main body, and clean plugs by using the included blue attachment. Furthermore, if you attach the red attachment you can also clean 2mm video connectors.

NEOCLEAN-EZ3
NEOCLEAN-EZ3

NEOCLEAN-EZ1 Plus

The EZ1Plus can clean 1.25mm optical connector ports and ODC plugs using the main body. In addition, you can clean plugs and ODC sockets by installing the included green attachment.

NEOCLEAN-EZ1 Plus

NEOCLEAN-EZ1 Plus

Specifications



Product Name NEOCLEAN-EZ
EZ1 Plus EZ1
Model No. ATC-NE-EZ1P ATC-NE-EZ1
Compatible Connectors
ODC,LC,MU,

1.25mm Ferrule Connector
MU, LC
Compatible Ferrule
PC, APC
Length (mm) Main Body  107 104
With cap attached 113 115
With extension - 170
Cleaning Area Φ0.5mm




Product Name NEOCLEAN-EZ
EZ2 EZ3 EZv
Model No. ATC-NE-EZ2 ATC-NE-EZ3 ATC-NE-EZv
Compatible Connectors SC, SC2, FC, FAS*1, FA*1 SC, FC, ST, E2000,

φ2.0mm ferrule Connector for HDTV*2
φ2.0mm ferrule Connector for HDTV*2
Compatible Ferrule PC, APC
Length (mm) Main Body  104 109
With cap attached 115 121
With extension 170 - -
Cleaning Area Φ0.8mm Φ0.6mm
*1 Use the provided attachments

*2 Tested Hybrid Connector  LEMO SMPTE 304M connector, Tajimi OPS / OPC series, Canare OC series, FC series.  For other type of connectors, please contact us.




Optical connector cleaner,NEOCLEAN Inquiry

PAGETOP

NEOCLEAN-E  Pen Type

Features

Simple one push action cleans ferrule end face in device adaptors. The cleaning cartridge is replaceable, with each cartridge performing about 750 cleanings, which will greatly reduce the cleaning costs.

Ferrule end face in plugs can be cleaned by using the attached cap.

NEOCLEAN-E

Renewal of NEOCLEAN-E1 (Square guide) LC adapter cleaning became more reliable.
new type and conventional type
The square guide tip will reliably catch the sleeve holder of the adapter, by making it difficult to insert diagonally.
※ Square guide have increased the tolerance against skewed insert. However, it is not recommended to insert at an angle. Be sure to insert it straight from the front.

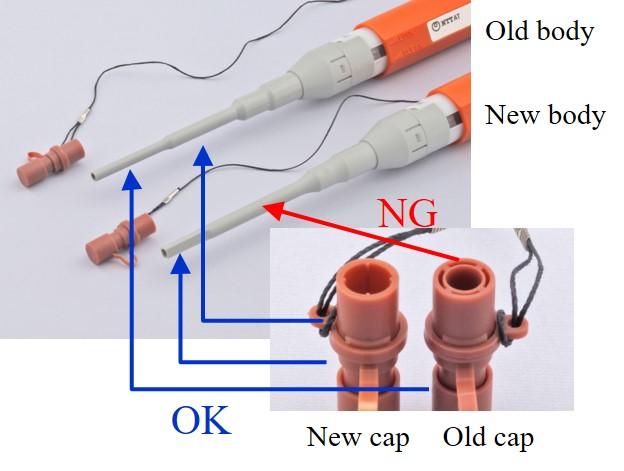

Attachment Compatibility

Specifications



Product Name NEOCLEAN-E
E1 E2 E3
Model ATC-NE-E1 ATC-NE-E2 ATC-NE-E3
Applicable Optical Connectors MU, LC
(PC/APC)
SC,SC2, FC, FAS, FA
(PC/APC)
SC, FC, ST, E2000
(PC/APC)
Standard Usages Over 750 times
Length (mm) 240 230 230
Replaceable Cartridge (3units/set) Model ATC-NE-ES1 ATC-NE-ES2 ATC-NE-ES3

Optical connector cleaner,NEOCLEAN Inquiry

NEOCLEAN-R2  Reel Type

Features

Optical Connector Cleaner NEOCLEAN wipes away contaminants from optical connector end face with ease. Just as with our previous products, the cleaning tape does not produce dust, and provides special cleaning strength while resisting foreign particles to mix into the tape. The main body also is made from anti-static material.

The tape advance mechanism has been simplified, reducing the number of assembly parts to a minimum resulting in cost reductions for both manufacturing and assembly.

NEOCLEAN-R

Specifications



Name NEOCLEAN-R2
Model ATC-NE-R2
# of Cleanings More than 400 times (tape cannot be replaced)
Dimensions W 115mmm × H 55mm × W 25mm

Optical connector cleaner,NEOCLEAN Inquiry

NEOCLEAN-S  Stick Type

Features

The NEOCLEAN stick is made with antistatic materials enabling it to control the generation of static electricity during the cleaning process. And just as with the reel type, the cloth in the cleaning part is made from special cleaning fiber.

Useful for cleaning connector end face inserted into adaptors and housings.

NEOCLEAN-E

Specifications



Name NEOCLEAN S125 NEOCLEAN S250
Model ATC-ST-01N ATC-ST-02N
Compatible Size 1.25 mm type 2.5 mm type
Stick Length Max. 152mm – Min. 45mm
Package 250 sticks/box

Optical connector cleaner,NEOCLEAN Inquiry

PAGETOP

Documents



Technical Document PDF Download Technical Document

"Why do I need to clean and inspect the end face now?"
Distributors List Distributors of Optical Connector Cleaner Series
SDS Search PDF Download Optical Connector Cleaner Safety Data Sheet
RoHS Compliant Products List RoHS Compliant Products List
RoHS Compliant Products List REACH Compliant Products List
