Optical Connector End Face Inspection tools
Supports high-quality optical connector manufacturing and maintenance with high-resolution and speedy end face inspection.
An increasing number of communication problems that occur in optical networks are caused by dirt adhering to the end faces of optical connectors. This is because the communication light is reflected and attenuated by microscopic dust and hand oil that cannot be seen with the naked eye on the end face of the optical connector,
and normal communication cannot be performed. These optical connector end face inspection tools are designed specifically for optical connector inspection and is the best solution to prevent such the troubles and improve communication quality and reliability.
Benefits / Features
- Lightweight, compact and highly portable.
-
Achieves auto Pass / Fail analysis in accordance with international standards.
- Various lineup including autofocus model.
Specifications / Details
There are 2 main types of optical connector end face inspection tools, depending on the purpose and use.
One is a portable type which is lightweight, compact, and easy to handle. It is mainly used at connection/maintenance work sites. The other is a bench top type with higher resolution and excellent repetitive workability for the optical connector production sites

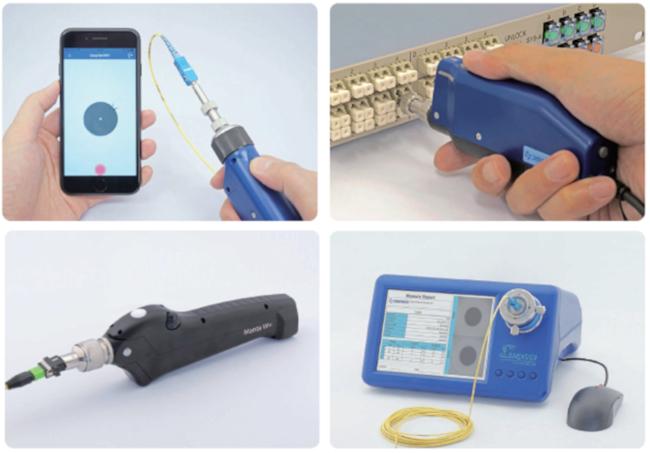

Portable Type
| Product | EasyGetWifi |
AutoGet
|
AutoGetWiFi
|
SMX-MANTA-W+
|
|---|---|---|---|---|
|
Main Use
|
・Single Fiber
・Multi Fiber*
|
・Single Fiber
・Multi Fiber*
|
・Single Fiber
・Multi Fiber*
|
・Multi Fiber*
|
|
Dimension
|
211×44×33mm
|
182×48×25mm
|
281×201×57mm
|
246×70×38mm |
|
Weight
|
188g | 152g |
565g
|
435g
|
|
Power Supply
|
Rechargeable Battery
|
USB bus power | Rechargeable Battery | USB bus power |
|
Monitor/Device
|
・SmartPhone
・PC |
・PC
|
・3.2inch LCD monitor
|
・PC |
| Focus |
Manual
|
Auto | Auto | Auto |
|
Connection
|
・USB
・WiFi |
・USB |
・USB(Only data export)
・WiFi(Only data export) |
・USB |
|
FOV
|
512um×384um
|
450um×360um
|
620um×620um
|
4,100um×3,000um
|
|
Pass/Fail Function
|
OK
|
OK
|
OK | OK |
| Image |
 |
 |
 |
 |
Bench Top Type
| Product |
EasyCheck
|
AutoCheck |
SmartCheck
|
FastCheck
|
|---|---|---|---|---|
| Main Use |
・Single Fiber
・Multi Fiber*
|
・Single Fiber
・Multi Fiber*
|
・Multi Fiber
|
・Single Fiber
・Transceiver
|
| Dimension |
270×245×155mm
|
270×245×155mm | 265×188×147mm |
286×101×86mm
|
| Weight |
1.6kg
|
1.6kg
|
6.9kg
|
3.3kg
|
| Power Supply |
AC Adapter
|
AC Adapter |
AC Adapter
|
AC Adapter
|
| Monitor/Device |
8inch LCD monitor
|
8inch LCD monitor
|
PC | PC |
| Focus | Manual | Manual | Auto | Auto |
| Connection |
Stand Alone
|
Stand Alone
|
USB
|
USB
|
| FOV |
EC80KC：1250um×937um
EC200KC：500um×375um
EC400KC：250um×180um
|
250um×180um
|
250um×250um
Scan Range
5,000um×6,000um |
410um×410um
|
| Pass/Fail Function | OK | OK | OK | OK |
| Image |
 |
 |
 |
 |
