High refractive index resin

We offer UV-curable high refractive index resins that have excellent transparency in the visible light range.
Based on the advanced technology we have cultivated in optical adhesives, we can customize products to meet our customers' needs.

Adhesive for precision fixing

Adhesive fixation on the order of submicrons is possible because there is very little change in fixing position due to curing or temperature changes.
*Low cure shrinkage (less than 2%)
*Low coefficient of thermal expansion (40 ppm/℃ or less)

AT9290F becomes transparent after curing
High reliability that withstands heat cycle tests (-40 to 85°C)
High heat resistance (260°C) that withstands solder reflow processing

Optical adhesive

Adhesive technology used in optical communication is one of our main technologies. In order to put low-cost and highly reliable optical components into practical use, adhesives that can be easily adhered and have excellent durability are required. The requirements differ depending on which part of the optical component it is used in. We develop and commercialize adhesives and resins that meet customer needs, such as refractive index matching, precision fixing, heat resistance and high elasticity, and low moisture permeability.

Fiber connection implementation service for silicon photonics

This is a SiC or SiN thin film membrane used as a standard sample holder for X-ray analysis and electron beam analysis (SEM, TEM).Adhesive fixation of the Si waveguide chip and fiber eliminates the need for a high-precision stage during chip characterization, making handling easier.

Silicon waveguide (silicon photonics)

Foundry services that support cutting-edge research and development

EUV beam splitter

We provide EUV beam splitters with arbitrary transmittance and reflectance.

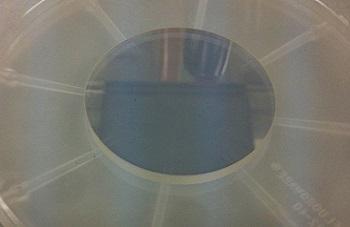

EUV dichroic mirror

We offer dichroic mirrors that separate EUV light from visible light and near-infrared light.

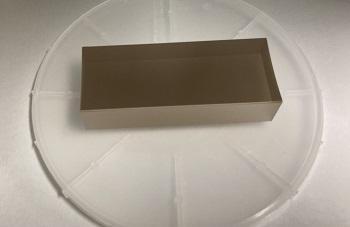

EUV toroidal mirror

We provide high-precision toroidal mirrors for EUV, VUV, and soft X-ray regions.

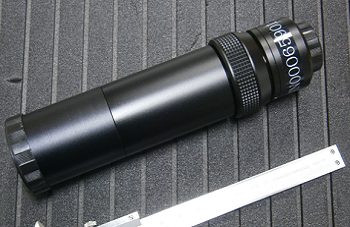

Condensing lens for ultraviolet light

We offer a long focus condensing lens for ultraviolet light consisting of a set of 4 lenses.

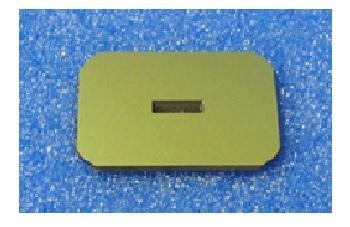

X-ray filter container

A filter container made of a SiN, SiC membrane that transmits soft X-rays and an ultra-thin noble metal structure.

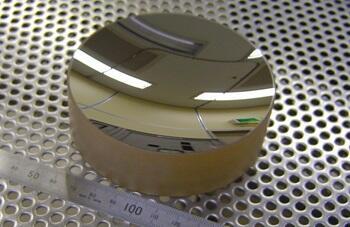

EUV mirror / soft X-ray mirror

We provide multi-layer mirrors and single-layer mirrors for EUV.

Beluganos 　A multi-purpose Network OS for whitebox switch toward IOWN APN

Would you like to take advantage of our rapidly growing network system?

BCA: Borderless Communication Assistant

BCA is Real-time Translation Service which enables you to communicate with people around the world.

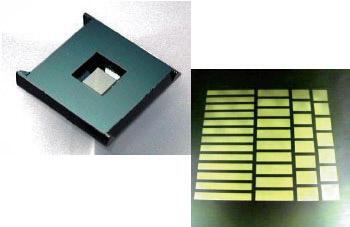

SiC membrane/SiN membrane

This is a SiC or SiN thin film membrane used as a standard sample holder for X-ray analysis and electron beam analysis (SEM, TEM).

Rust Preventive Powder Coating ​for preventing corrosion of metal materials

Equipment corrodes in harsh environments such as along the coast or in hot spring areas.
Rust Preventive Powder Coating protects your equipment from corrosion!

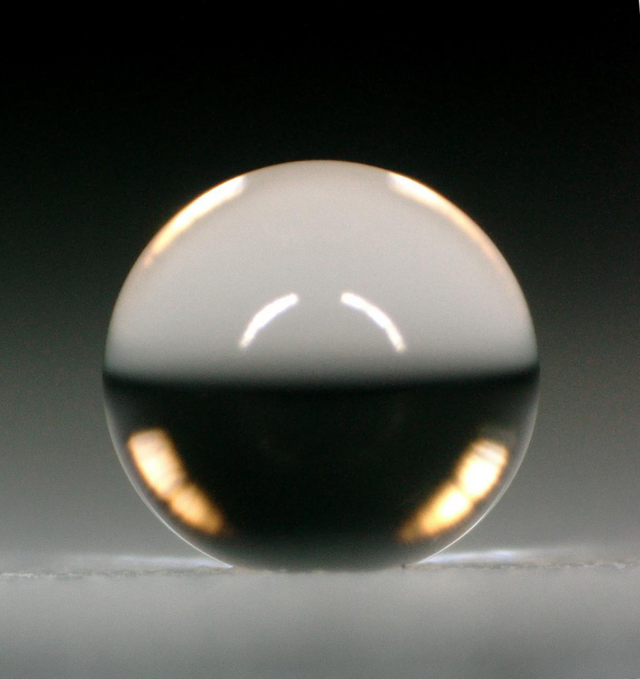

Super hydrophobic coating HIREC ®

super hydrophobic coating has completely changed the conventional concept of Super hydrophobic materials

Humidity control sheet to prevent condensation

Prevents condensation for a long period of time without using electric power, realizing maintenance-free equipment inspection

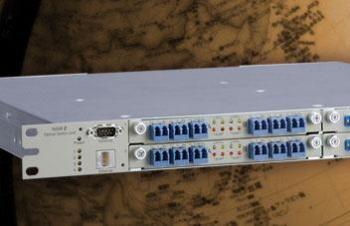

intelligent light switch

An optical switch, also known as an optical line switching device (automatic switching type optical patch panel), is a device that enables the network to be always connected.
Any communication protocol (Ethernet, ATM, etc.) or communication speed (1GbE, 100GbE, etc.) can be used.

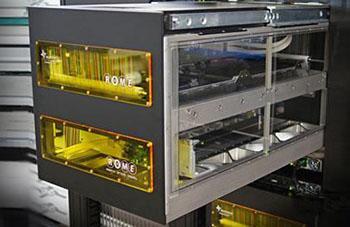

Robotic Fiber Switch

Would you like to have a robot do the troublesome patch panel wiring change?

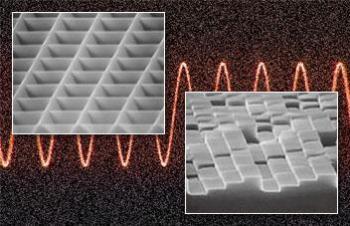

Mold for nanoimprint

From ready-to-use catalog products to customer-specific custom products

WinActor®

Move forward!
Leave it to Digital Workers.
WinActor is software solution that automates various tasks.
Let's review few customer success stories.

Adhesive for fiber array assembly

A fiber array used for multicore input/output of optical waveguide devices.
V-groove fixing adhesive is required for assembly.
Among them, the E series, which is particularly durable, has been well received by many customers.

Adhesive for optical path coupling

High-precision, wide-range refractive index control (accuracy: ±0.005, range: 1.456 to 1.567 (@589nm)) is possible
Also applicable to solder reflow treatment (260°C)
High moisture resistance

Sealing material for optical parts

Less internal stress during curing and heat cycle
Low moisture permeability even at high temperatures

Ultra-thin polyimide wave plate

Thin wave plate suitable for optical circuits

Made of polyimide, it has excellent heat resistance and chemical resistance that can withstand soldering work.
In addition, the material itself has a chemical structure that suppresses absorption at communication wavelengths, making it ideal for use in optical circuits (PLC).
Modulators (Mach-Zehnder, QPSK) and low-loss optical circuit implementation on AWG are possible.

nm-scales for nm-beam size measurement

We have made it possible to measure the fine beam sizes of electron beams, ion beams, and X-rays.
Beam width can be measured in nm units.
For 1D and 2D measurement​ ​are available.

Length measuring scale

Ideal for length and angle calibration of scanning probe microscopes, etc. essential for fine pattern evaluation

Standard sample for in-depth profiling

It is a multilayer film standard sample used for depth direction resolution evaluation, distance measurement, and sensitivity evaluation such as SIMS, AES, XPS, and XRF analysis.
We will provide a standard sample of your desired material combination, film thickness, and number of layers.

Tissue Simulated Liquids for SAR Measurement

Compatibility evaluation for radio wave protection guidelines for mobile phones, etc.

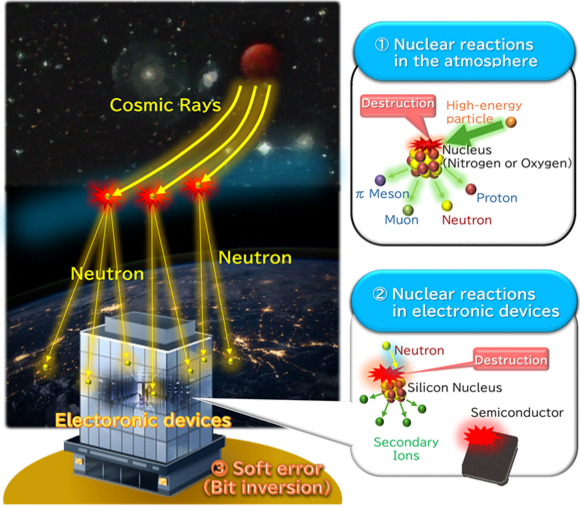

Soft error test service

Reproduce malfunction caused by cosmic rays

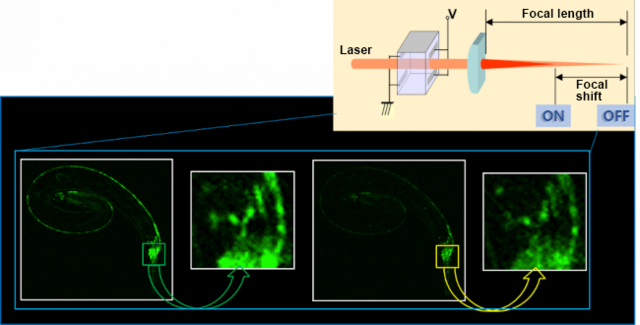

KTN Varifocal Lens

The world's fastest lens that can change focal length in microseconds

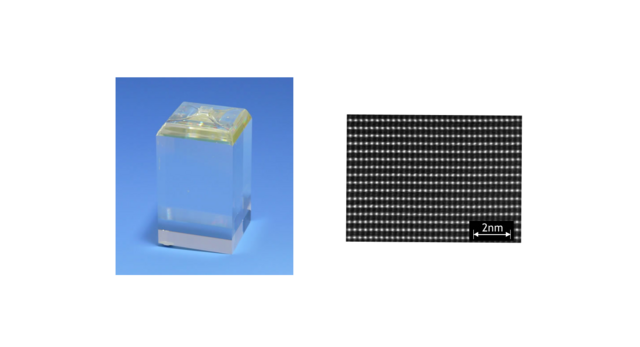

Electro-optic crystal KTN (KTa1​-​xNbxO3)

Added TEM image of KTN crystal

KTN Optical Deflector

High-speed (100 kHz) optical deflector with no moving parts

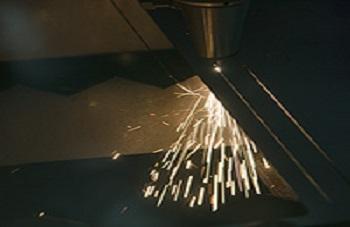

Beam shaper for high power laser

Light reflection type beam shaper that can handle high power lasers of over 10 kW

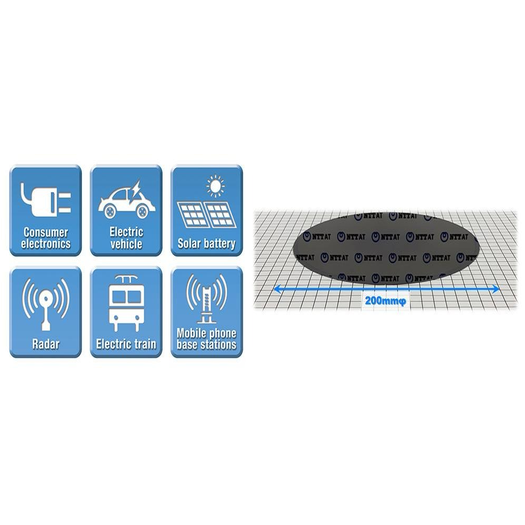

nitride semiconductor epitaxial wafer

Power devices using nitride semiconductors are expected to be green devices that support the future low-carbon society.
NTT-AT contributes to the early realization of energy conservation with its nitride semiconductor epitaxial wafer manufacturing technology.

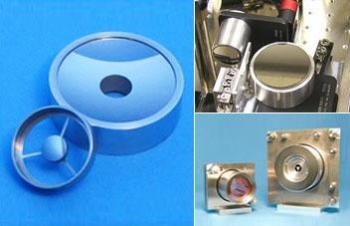

EUV/X-ray optical system design and production

We design and manufacture optical systems for focusing and imaging extreme ultraviolet (EUV) and X-rays.

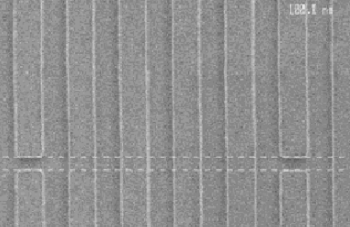

X-ray chart (Custom chart manufacturing example)

Reflective chart for EUV
Multilayer film: Mo/Si for wavelength 13.5 nm, absorber: Ta

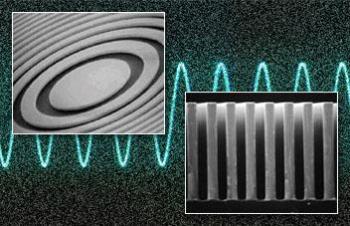

X-ray Fresnel zone plate

We offer highly irradiation resistant X-ray Fresnel zone plates made of SiC membrane and Ta absorber.

X-ray chart

We provide resolution test charts for X-ray microscopes.

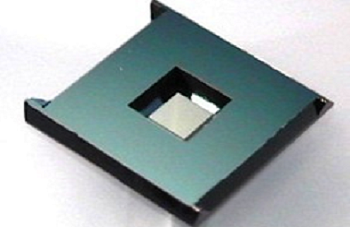

transmission grating

We offer stencil structure gratings for VUV, EUV, and soft X-ray regions.

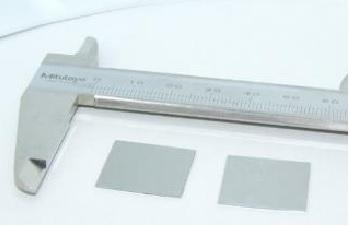

Soft X-ray multilayer polarizer

We provide reflective polarizers for the EUV region and soft X-ray region.

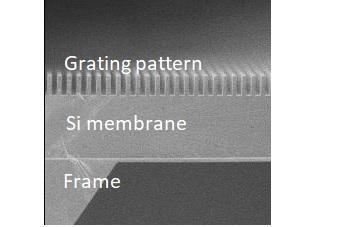

X-ray diffraction grating

Phase gratings and absorption gratings for X-ray Talbot imaging with low sidewall roughness and excellent X-ray radiation resistance.

Bidirectional Boundary Microphone FR-1200

Dramatically improve customer experience with high-performance stereo microphones!
Noise cancellation for clear communication!
Ideal as a microphone for a teller conversation recording system to enhance anti-harassment measures.

Optical connector manufacturing tool lineup

Solutions for speedy, low-cost mass production of high-quality optical connectors
